Galvanized Safety Cage Ladder for Oil & Gas, Water Treatment and Industrial Facilities
The galvanized safety cage ladder is a fixed vertical access ladder designed for industrial facilities, elevated equipment, and permanent access systems. Manufactured from high-quality Q235B carbon steel or stainless steel and protected by a hot-dip galvanized finish, it is suitable for long-term use in corrosive outdoor environments.

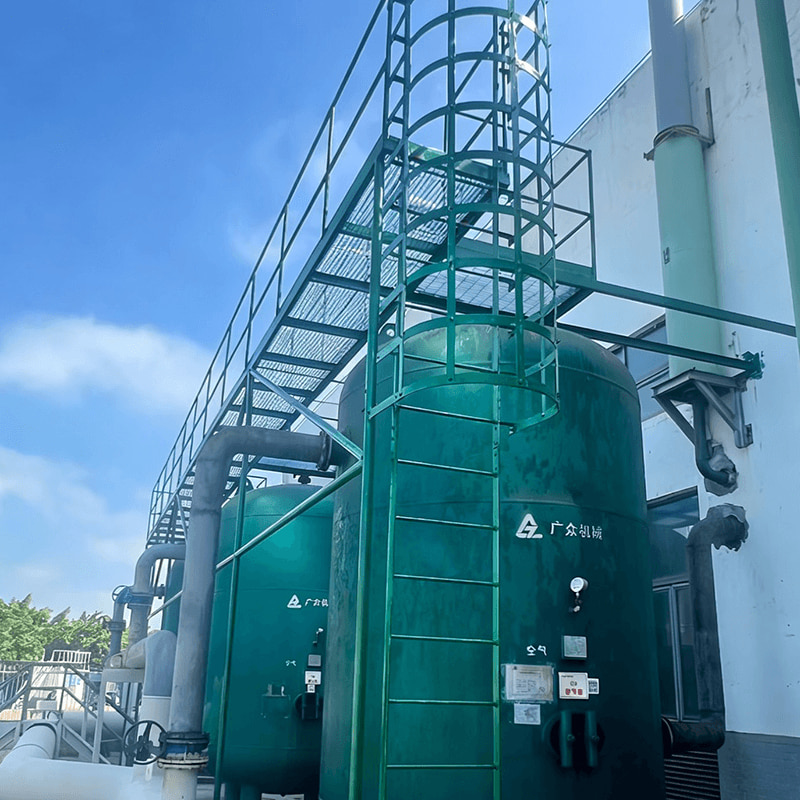

The safety cage structure provides additional protection for maintenance personnel and is widely used on oil and gas storage tanks, water treatment facilities, wastewater treatment plants, pump stations, industrial buildings, telecom towers, chimneys, platforms, and infrastructure projects.
All ladders can be custom manufactured according to project drawings and site installation requirements, including ladder width, ladder height, safety cage dimensions, mounting brackets, platform connections, and surface treatment options.
Product Advantages
| Advantage | Description |
|---|---|
| High-Strength Structural Design | Manufactured from industrial-grade welded steel to provide excellent load-bearing capacity and long-term structural stability. |
| Hot-Dip Galvanized Corrosion Protection | Galvanized coating thickness can reach 65μm-120μm, providing effective resistance against rain, salt spray, moisture, and chemical corrosion. |
| International Safety Standards | Can be designed and manufactured according to OSHA, ISO, EN, and project-specific safety requirements. |
| Project-Based Customization | Supports custom production based on customer drawings, site dimensions, installation requirements, and engineering specifications. |
| Easy Installation and Maintenance | Modular structure makes transportation, on-site installation, inspection, and future maintenance easier. |
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Galvanized Safety Cage Ladder |
| Ladder Type | Fixed Vertical Access Ladder |
| Material | Q235B Carbon Steel / SUS304 / SUS316 |
| Surface Treatment | Hot-Dip Galvanized |
| Ladder Width | 400mm – 600mm |
| Rung Spacing | 250mm – 300mm |
| Safety Cage Diameter | 650mm – 800mm |
| Cage Starting Height | 2200mm |
| Installation Type | Wall Mounted / Tank Mounted |
| Design Standard | OSHA / ISO / EN |
| Color | Natural Galvanized Finish |
| Service Life | 15 – 30 Years |
| Custom Service | Available |
Reference Price
The following prices are provided for project budget reference only:
| Order Quantity | Reference Factory Price |
|---|---|
| Total length over 50 meters | USD 50 – 55 per meter |
| Total length over 100 meters | USD 40 – 45 per meter |
| Stainless Steel 304 Safety Cage Ladder | Quoted according to specifications |
| Stainless Steel 316 Safety Cage Ladder | Quoted according to project requirements |
The final price depends on total length, steel thickness, safety cage dimensions, surface treatment requirements, number of mounting brackets, platform configuration, packaging method, destination country, and delivery port.
Please provide drawings or project parameters to receive an accurate quotation.
Typical Applications
| Industry | Applications |
|---|---|
| Oil & Gas Industry | Used for crude oil tanks, chemical storage tanks, refinery equipment, LNG facilities, and energy infrastructure projects. |
| Water Treatment Industry | Used for wastewater treatment plants, water treatment tanks, sedimentation tanks, pump stations, and filtration systems. |
| Industrial Buildings | Used for equipment maintenance platforms, roof access, warehouse facilities, and production workshops. |
| Telecom & Power Facilities | Used for telecom towers, signal towers, substations, and power plant equipment maintenance. |
Frequently Asked Questions
Does the safety cage ladder comply with OSHA standards?
Yes. We can design and manufacture safety cage ladders according to OSHA 1910.23, ISO standards, EN standards, and project-specific requirements.
What is the galvanized coating thickness?
The galvanized coating thickness is typically 65μm-120μm. Inspection reports can be provided according to project requirements.
What is the maximum ladder height available?
The ladder can be manufactured in sections according to transportation requirements, and the total height can be extended by connecting multiple sections based on the project design.
Can the dimensions be customized?
Yes. Ladder width, safety cage diameter, rung spacing, mounting brackets, and platform connections can all be customized.
Do you provide installation drawings?
Yes. We can provide CAD drawings, 3D models, and installation guidance documents.
What is the production lead time?
The standard production lead time is approximately 15-30 days, depending on order quantity and product specifications.
Which countries do you export to?
Our products have been widely used in the United States, Canada, Australia, the United Kingdom, Germany, the United Arab Emirates, Saudi Arabia, and other international markets.
